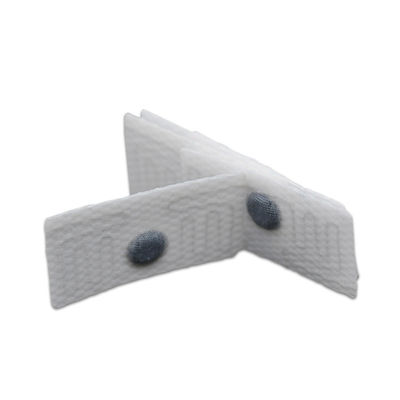

Woven Washable UHF RFID Laundry Tag 80 - 120bar Pressure Long Lifetime

Woven Washable UHF RFID Laundry Tag 80 - 120bar Pressure Long Lifetime
Woven Washable UHF RFID Laundry Tag 80 - 120bar Pressure Long Lifetime Woven Washable UHF RFID Laundry Tag 80 - 120bar Pressure Long Lifetime Woven Washable UHF RFID Laundry Tag 80 - 120bar Pressure Long Lifetime

Large Image :  Woven Washable UHF RFID Laundry Tag 80 - 120bar Pressure Long Lifetime

Product Details:
Place of Origin: Shenzhen, China
Brand Name: ZDCARD
Certification: ISO 9001, 14001, OHSAS18001
Model Number: ATAG-05
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 100pcs/bag,5000pcs/ctn
Delivery Time: 6-12 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 100,000,000 pcs per month

Woven Washable UHF RFID Laundry Tag 80 - 120bar Pressure Long Lifetime

Description
Chip: NXP UCODE8 Reading Distance: 5-7m
OperatingFrequency: UHF(860-960 MHz) Protocol: EPC Global Class 1 Gen2/ ISO18000-6C
Pressure: 80-120bar Feature: Washable, High Temperature Resist, Recyclable
High Light:

laundry id tags

,

washable rfid tags

ISO18000-6C Passive Rfid Clothing Tags Woven Washable UHF Laundry Washable Tags





The advaNFCes of this tag:


1. Double-sided pressing process, the outer layer of the chip has a large black rubber area to better protect the chip.

2. The chip is NXP's latest UHF chip UCODE8, which has high sensitivity, best group read performance (very important in washing), and the chip can be automatic frequency-modulated, according to the frequency of the reader, so it has stable and reliable RF performance.

3. Applied to industrial washing, capable of 80-120bar pressure.

4. Our test result is 270 times wash cycles, so 200 times is completely no problem.

5. 100% function tested by Agilent.



Datasheet

General

FREQUENCY

UHF 860-960MHz

DIMENSION(+/-5%)

SEWING:20mm x 87mm SACK:18mm x 87mm 15mmx87mm  Mini :20mm x 60mm

THICKNESS(+/-5%)

2.3mm (on-chip location only ) ; 0.8mm(rest of tag)

Reading Range

6m by ARFID’s Handset in bath towel test , 8m by Moto RFID PDA

Group Read

1000pcs

Storage Conditions

40℃/77℉, 50%RH



Physical

MAXIMUM TEMPERATURE EXPOSURE

220℃ (392℉) |30Seconds | 2.5 bars(36,28PSI)

WASHING

100℃ (194℉) | 60minutes 120Bar

PRE-DRYING IN TUMBLER

160℃ (320℉) | 30minutes

TUNNEL FINISHER

185℃ (365℉) | 30minutes

STERILIZATION PROCESS

134℃ (273℉) | 20minutes

WATER EXTRACTOR PRESS

120bars

WARRANTY

New Encapsulation: 250cycles or 3years



CHIP SPECIFICATIONS

EPC Gen2, ISO 18000-6C, UCODE 8/8m NXP

Up to 128-bit of EPC memory

96-bit EPC

96-bit Tag IDentifier (TID) factory locked

48-bit unique serial number factory-encoded into TID

32-bit User Memory(UCODE 7m Only ),

32-bit kill password to permanently disable the tag ;32-bit access password; Product Status Flag bit: enables the UHF RFID tag to be used as EAS

Wide operating temperature range: -40℃ up to +85℃



Outstanding Service

1. OEM service. we can produce according to your specific requirements
2. Excellent after-sale service. we have ASS department to follow up your frank feedback and kindly comment for your sample & order.
3. Good production capacity to guarantee quick on-time delivery.
4. Safe packaging in order to goods received well in your hand.
5. All inquiries & emails replied quickly, within 8 hours at least.
