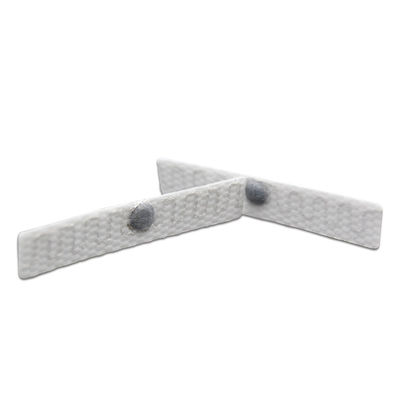

Passive RFID Laundry Tag / Woven Washable UHF Laundry Washable Tags

Passive RFID Laundry Tag / Woven Washable UHF Laundry Washable Tags
Passive RFID Laundry Tag / Woven Washable UHF Laundry Washable Tags Passive RFID Laundry Tag / Woven Washable UHF Laundry Washable Tags Passive RFID Laundry Tag / Woven Washable UHF Laundry Washable Tags

Large Image :  Passive RFID Laundry Tag / Woven Washable UHF Laundry Washable Tags

Product Details:
Place of Origin: Shenzhen, China
Brand Name: ZDCARD
Certification: ISO 9001, 14001, OHSAS18001
Model Number: ATAG-05
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 100pcs/bag,5000pcs/ctn
Delivery Time: 6-12 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 100,000,000 pcs per month

Passive RFID Laundry Tag / Woven Washable UHF Laundry Washable Tags

Description
Material: Textile Size: 38*20mm
Chip: NXP UCODE8 Reading Distance: 5-7m
OperatingFrequency: UHF(860-960 MHz) Protocol: EPC Global Class 1 Gen2/ ISO18000-6C
Washing Cycles: 230 Cycles Pressure: 80-120bar
Feature: Washable, High Temperature Resist, Recyclable
High Light:

laundry id tags

,

washable rfid tags

ISO18000-6C Passive Rfid Clothing Tags Woven Washable UHF Laundry Washable Tags

The advaNFCes of this tag:


1. Double-sided pressing process, the outer layer of the chip has a large black rubber area to better protect the chip.

2. The chip is NXP's latest UHF chip UCODE8, which has high sensitivity, best group read performance (very important in washing), and the chip can be automatic frequency-modulated, according to the frequency of the reader, so it has stable and reliable RF performance.

3. Applied to industrial washing, capable of 80-120bar pressure.

4. Our test result is 270 times wash cycles, so 200 times is completely no problem.

5. 100% function tested by Agilent.





Datasheet

General
FREQUENCY UHF 860-960MHz
DIMENSION(+/-5%) SEWING:20mm x 87mm SACK:18mm x 87mm 15mmx87mm  Mini :20mm x 60mm
THICKNESS(+/-5%) 2.3mm (on-chip location only ) ; 0.8mm(rest of tag)
Reading Range 6m by ARFID’s Handset in bath towel test , 8m by Moto RFID PDA
Group Read 1000pcs
Storage Conditions 40℃/77℉, 50%RH



Physical
MAXIMUM TEMPERATURE EXPOSURE 220℃ (392℉) |30Seconds | 2.5 bars(36,28PSI)
WASHING 100℃ (194℉) | 60minutes 120Bar
PRE-DRYING IN TUMBLER 160℃ (320℉) | 30minutes
TUNNEL FINISHER 185℃ (365℉) | 30minutes
STERILIZATION PROCESS 134℃ (273℉) | 20minutes
WATER EXTRACTOR PRESS 120bars
WARRANTY New Encapsulation: 250cycles or 3years



CHIP SPECIFICATIONS
EPC Gen2, ISO 18000-6C, UCODE 8/8m NXP
Up to 128-bit of EPC memory
96-bit EPC
96-bit Tag IDentifier (TID) factory locked
48-bit unique serial number factory-encoded into TID
32-bit User Memory(UCODE 7m Only ),
32-bit kill password to permanently disable the tag ;32-bit access password; Product Status Flag bit: enables the UHF RFID tag to be used as EAS
Wide operating temperature range: -40℃ up to +85℃



Outstanding Service

1. OEM service. we can produce according to your specific requirements
2. Excellent after-sale service. we have ASS department to follow up your frank feedback and kindly comment for your sample & order.
3. Good production capacity to guarantee quick on-time delivery.
4. Safe packaging in order to goods received well in your hand.
5. All inquiries & emails replied quickly, within 8 hours at least.
6, Production time: 5 - 10 working days
7, Shipping: By express: 3-5 days By air: 5-10 days By sea: 12-25 days
