|Chip:||NXP UCODE8||Reading Distance:||5-7m|
|OperatingFrequency:||UHF(860-960 MHz)||Protocol:||EPC Global Class 1 Gen2/ ISO18000-6C|
|Washing Cycles:||230 Cycles||Pressure:||80-120bar|
|Feature:||Washable, High Temperature Resist, Recyclable|

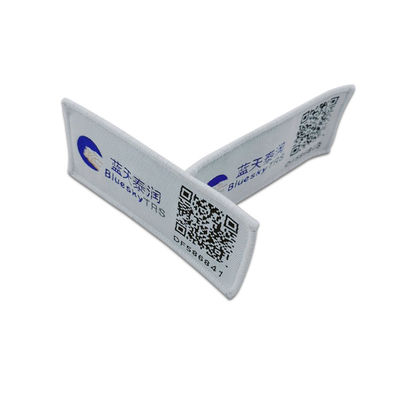

RFID washable laundry tags,
Hospital RFID Laundry Tag,
OEM Washable Laundry Tags
The laundry tag is mainly used for washing industry tracking, for checking clothes washing and so on. Our laundry tags have the characteristic of high temperature resistance and rub resistance. The laundry care tag is mainly made by silica gel. Washing label is a safety non-toxic and wear durable environmentally friendly electronic tags, is especially designed for cloth printing and dyeing industry, washing industry, medical, logistics and other professional areas. The laundry washing tag is widely used in laundry, medical, logistics, automotive engine maintenance logo, chemical raw materials and other harsh environment. Except good performance, we also provide laundry tags with different colors, you can choose the right China laundry tag according to your preference, we guarantee product quality.
The advaNFCes of this tag:
1. Double-sided pressing process, the outer layer of the chip has a large black rubber area to better protect the chip.
2. The chip is NXP's latest UHF chip UCODE8, which has high sensitivity, best group read performance (very important in washing), and the chip can be automatic frequency-modulated, according to the frequency of the reader, so it has stable and reliable RF performance.
3. Applied to industrial washing, capable of 80-120bar pressure.
4. Our test result is 270 times wash cycles, so 200 times is completely no problem.
5. 100% function tested by Agilent.
6.Widely used by hotel and hospital for clothing mangement service
7.Provide a better feeling of clean and healty hotel experiment
|DIMENSION(+/-5%)||SEWING:20mm x 87mm SACK:18mm x 87mm 15mmx87mm Mini :20mm x 60mm|
|THICKNESS(+/-5%)||2.3mm (on-chip location only ) ; 0.8mm(rest of tag)|
|Reading Range||6m by ARFID’s Handset in bath towel test , 8m by Moto RFID PDA|
|Storage Conditions||40℃／77℉, 50%RH|
|MAXIMUM TEMPERATURE EXPOSURE||220℃ (392℉) |30Seconds | 2.5 bars(36,28PSI)|
|WASHING||100℃ (194℉) | 60minutes 120Bar|
|PRE-DRYING IN TUMBLER||160℃ (320℉) | 30minutes|
|TUNNEL FINISHER||185℃ (365℉) | 30minutes|
|STERILIZATION PROCESS||134℃ (273℉) | 20minutes|
|WATER EXTRACTOR PRESS||120bars|
|WARRANTY||New Encapsulation: 250cycles or 3years|
|EPC Gen2, ISO 18000-6C, UCODE 8/8m NXP|
|Up to 128-bit of EPC memory|
|96-bit Tag IDentifier (TID) factory locked|
|48-bit unique serial number factory-encoded into TID|
|32-bit User Memory(UCODE 7m Only ),|
|32-bit kill password to permanently disable the tag ；32-bit access password; Product Status Flag bit: enables the UHF RFID tag to be used as EAS|
|Wide operating temperature range: -40℃ up to +85℃|
1. OEM service. we can produce according to your specific requirements
2. Excellent after-sale service. we have ASS department to follow up your frank feedback and kindly comment for your sample & order.
3. Good production capacity to guarantee quick on-time delivery.
4. Safe packaging in order to goods received well in your hand.
5. All inquiries & emails replied quickly, within 8 hours at least.
6, Production time: 5 - 10 working days
7, Shipping: By express: 3-5 days By air: 5-10 days By sea: 12-25 days
