Product Details:
|
| Model NO.: | BJZD004 | Read-Write Method: | Non-Contact Type |
|---|---|---|---|
| Data Transmission Mode: | Serial | HS Code: | 8523521000 |
| Specification: | 85.5*54*0.84mm | Transport Package: | 2000PCS/Carton |
| Highlight: | printable rfid cards,rewritable rfid card |
||

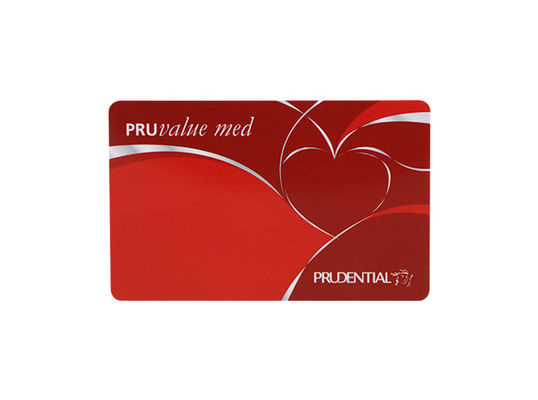

Cmyk Printed Contactless 13.56MHz RFID Card
| Identification: | insurance,membership,employee,library and campus,etc | ||
| Public transportation: | subway ticket ,bus rfid ticket,refueling control system,etc | ||
| Access control: | hotel management,game ticket,swimming pool, | ||
| skating,laundry,etc | |||
| Attendance system: | time attendance,etc | ||
| E-payment: | shopping,water,electricity,gas, communication payment | ||
| Logistics automation | |||
| Material : | PVC/PET/ABS | ||
| Size: | 85.5x53.9mm | ||
| Thickness: | 0.5~0.8mm(+/- 0.04 )mm | ||
| Weight | 3~6kg/1000pcs | ||
| Available Chip: | s50/s70/2k/4k/8k/Ultralight/ | ||
| Plus/I-CODE SLI-2/s | |||
| Frequency: | 13.56MHz | ||
| Available Craft: | Digit printing , Magnetic stripe , Barcode, Hotstamping gold/silver color, Signature panel , Series number marking, Hole punch,etc |
||
Other RFID Chip Option
| Frequency | chip type | Memory | RF Standard |
| 13.56MHz | MF Classic 1k S50 | 1K Byte R/W | ISO 14443A |
| MF Classic 4k S70 | 4K Byte R/W | ISO 14443A | |
| MF Ultralight | 512 bit R/W | ISO 14443A | |
| MF Ultralight C | 192 bit R/W | ISO 14443A | |
| MFUltralight EV1 | 384/1024 bit R/W | ISO 14443A | |
| MF EV1 2K | 2K Byte R/W | ISO 14443A | |
| MF EV1 4K | 4K Byte R/W | ISO 14443A | |
| MF EV1 8K | 8K Byte R/W | ISO 14443A | |
| MF 4K D40 | 4K/8K Byte R/W | ISO 14443A | |
| MF Plus 2k | 2K Byte | ISO 14443A | |
| MF Plus 4k | 4K Byte | ISO 14443A | |
| I CODE SLI | 1K bit R/W | ISO 15693, | |
| ISO18000 | |||
| NFC203/203F | 144 Byte R/W | ISO 14443A | |
| NFC210 | 48 Byte R/W | ISO 14443A | |
| NFC212 | 128 Byte R/W | ISO 14443A | |
| NFC213/213F | 144 Byte R/W | ISO 14443A | |
| NFC215 | 504 Byte R/W | ISO 14443A | |
| NFC216 | 888 Byte R/W | ISO 14443A | |
| NFC213F/216F | 144/888 byte | ISO 14443A | |
| FM11RF08 | 1K byte | ISO 14443A | |
| FM11RF32 | 4K byte | ISO 14443A | |
| Topaz512(BCM20203) | 512 byte | ISO 14443A | |
| Felica Lite-S(RC-S966) | 14 blocks+1 subtractio block(1 block= 16 byte) |
ISO/IEC 18092 | |
| Legic MIM 256 | 256/1K Byte R/W | Legic RF Standard | |
| TI2048 | 2K bit R/W | ISO 15693, | |
| ISO18000 | |||
| Picopass 2k | 2K/32K bit R/W | ISO 14443B, | |
| ISO 15693 | |||
| UHF/2.45GHz | HSL | 2K bit R/W | ISO 18000 |
| 860~960MHz | EPC G2 | 512 bit R/W | EPC class1,G2 |
| Monza 5 | 128 bit R/W | EPC class1,G2, | |
| ISO 18000-6C | |||
| Monza 4D/4E/4QT | 128 bit R/W | EPC class1,G2, | |
| ISO 18000-6C |
Product Package
250pcs/box, 2500pcs/carton
Carton Size: 13 * 23 * 50 cm
Product Features
1.All our products are printed on environmentally plastic
2.Widely used
3.Showing various types of information
