Product Details:
|
Production Name: | Anti Metal RFID Tag | Material: | ABS |
---|---|---|---|
Size: | 85*25mm | Frequency: | 860-960mhz |
UHF Chip: | AlienH3, Impinj Monza 4QT Etc | Print: | Silkscreen, Laser |
Encode: | Url, Number, Text, App | Application: | Asset Management, Logistics Management Etc |
High Light: | anti metal tag,anti metal nfc tags |
Product Description
When you're mounting RFID tags on metal surfaces or metal products, you should be aware that if you use non-metal mount RFID tags, your system will not function as desired as the metal will detune any passive RFID tag that is not designed to be placed on metal. Using tags that are specifically calibrated to the materials you need to track makes reading, tracking, and inventorying them easier and provides for greater read range. Metal mount RFID tags are typically rugged, difficult to damage, and easy to weld, screw or otherwise attach.
We have basically 2 material UHF anti-metal tags: ABS and PCB
Model |
P9525 |
Air Interface Protocol |
EPC global C1 Gen2 / ISO 18000-6C |
Operation Frequency |
902-928mhz |
Size |
85*25mm or customized |
Weight |
20g |
Max Read Distance |
8 meter(stationary type);2-3.5meter(handset) |
On metal or Balanced |
on matal and banlanced |
Memory |
EPC≥96bits, User Memory 512bits |
Protection grade |
IP65 |
Quakeproof grade |
MIL STD 810-F BS EN 60068-2 |
Fixed form |
3M gum |
Lifetime of sticker |
10 years |
Applications |
remote, severe environment, Outdoor asset management |

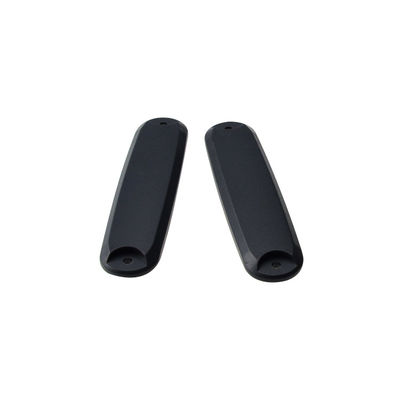

Product Images:
Chip available:
FM S50 (1K), S70(4K), ISSI4439 (1K), FM11RF08(1K), Ultralight (64), Ultralight C (192), 4K, 8K.
chips typically operate at a distance of up to 10cm depending on the power provided by the reader. Ideal for various low-cost contactless ID/ticketing applications as well as NFC-based systems.
This RFID tags label is NFC forum type to compliant, like nfc tag.
Available Dimensions (mm):
85.5X54, 80X50, 73*23, 55*17, 50X50, 40*25, 38*25, 35*35, 30*15, φ 45, 43*26, 32*32, 37*25, 32*27, 19*35, φ 25, 100*15,
50*35(mount on metal tag), φ 50(mount on metal tag, 50*50., 25*31
Other sizes will be available as well.
Please welcome contact if you have special requirement for tag size! Our R&D department will do antenna designing for you.
Use:
Public Transport: Subway tickets, bus RFID ticket
Access Control: Payment membership card, time attendance, game ticket^
Logistics, hotel management, transportation, library and campus, Parking lot system and Consuming system, anti-fake label, warehouse management, production line^. Access Control, Cashless Vending, Loyalty & Discount Cards, Leisure card, Toll Card, Student/Campus Card/School Card, Identity Card, etc
FAQ:
Question 1: Do you have stock of anti-metal rfid tag?
Yes, we do keep a safety stock level. Please consult our sales representatives for more information.
Question 2: Can I get an anti-metal RFID tag sample? how long will it take?
Yes, we can provide free samples. Samples will be shipped via FedEx, UPS, TNT or DHL. It will take approx. 3-5 days to arrive.
Question 3: Can I add my logo, customize the tag, or any re-design of the anti-metal RFID tag?
Yes, we are a highly flexible manufacturer. We accept ODM, OEM and custom-design orders. Please consult our sales representatives for more information.
Question 4: What certifications or standards are you compliant with?
We are compliant with the majority of the industry standards, including ISO9001, ISO14000, RoHS and EPCglobal. Upon request, we can supply SGS and REACH reports on our products.
