|Antenna Type:||Wired With Ferrite Core||Color:||Black, White, Yellow Or Customized|
|Chip Option:||TK4100, NFC213, Alien H3, Etc||Frequency:||125KHz, 13.56MHz, 860-960MHz|
|Reading Range:||LF/HF: 0-6cm; UHF: 0-3m|

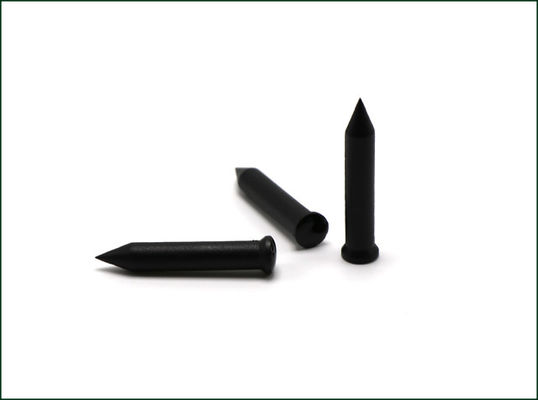

rfid tree nail tag,
uhf rfid nail tag
ABS material , waterproof , various size and RFID chip, color for optional .
The Nail Tags are passive RFID tran‐sponders which are very useful for tree population monitoring or pallet tracking.
fit for different application and this special ABS material is very strong.
|Material||Special ABS material|
41*28mm, 40*12mm, 36*9mm
Black, White, Yellow Or Customized
IP67, 68° F (20° C), 3.3 ft (1 m) x 1 h
IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h]
IEC 68.2.29 [40 g, 18 ms, 6 axis, 2000 times]
-13° to +185° F (-25° to +85° C), 1000 h
-13° to +185° F (-25° to +85° C)
|Available chips|| LF chips: TK4100,EM4305,T5577, etc
HF chips: FM11RF08, NFC 213, etc.
UHF chips: Alien H3, Monza 4, etc
|Frequency||125KHz, 13.56MHz, 860-960MHz|
|Reading distance||LF/HF: 0-6cm; UHF: 0-3m|
|Ultra High Frequency Chips(860-960 MHz)|
|1. Alien Higgs3, Alien Higgs 4, Alien Higgs 5|
|2. Impinj Monza 3, Monza 4, Monza 5, R6|
|3. UCODE® G2iM, UCODE® G2iL, UCODE® 7, UCODE® 8, UCODE® DNA|
UCODE is a registered trademark of B.V.
|High Frequency Chips(13.56Mhz)|
|Protocol ISO/IEC 14443A|
|1. Classic® 1K, Classic® EV1 1K, Classic® 4K|
|2. Plus® 1K, Plus® 2K, Plus® 4K|
|3. ® DESFire® 2K, ® DESFire® 4K, ® DESFire® 8K|
|4. NFC® 203 (144 bytes), NFC® 213 (144 bytes), NFC® 215 (504 bytes), NFC® 216(888 bytes)|
|5. Ultralight® (48 bytes), Ultralight® EV1 (48 bytes), Ultralight® C(148 bytes)|
|Protocol ISO 15693/ISO 18000-3|
|1. ® SLIX, ® SLIX-S, ® SLIX-L, ® SLIX 2|
and Classic are registered trademarks of B.V. and are used under license.
and Plus are registered trademarks of B.V. and are used under license.
DESFire are registered trademarks of B.V. and are used under license.
and Ultralight are registered trademarks of B.V. and are used under license.
NFC are registered trademarks of B.V. and are used under license.
are registered trademarks of B.V. and are used under license.
|Low Frequency Chips(125Khz)|
|1. Read only chips: TK4100, EM4200|
|2. Read and write chips: ATMEL T5577, EM4305, EM4450|
|3. ® 1, ® 2, ® S256|
is registered trademarks of B.V.
1. Waterproof IP 68
2. Read distance: Up to 5~30cm (Depends on reader and IC type)
3. Flexible & easy-to-wear
4. 100, 000 times reading & writing
5. Also Available: Custom colors, OEM logo
6. Oil resistance
7. Good for recycling
