Home ProductsRFID Nail Tag

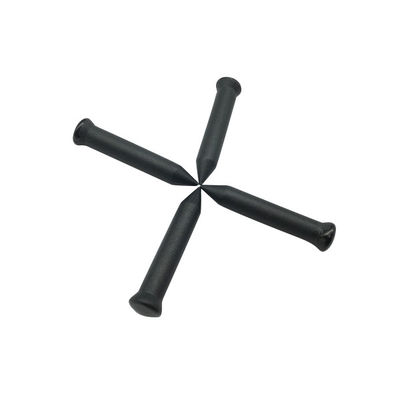

125khz TK4100 For Asset Tracking / Wood Management RFID Nail Tag

Certification
China Shenzhen ZDCARD Technology Co., Ltd. certification
China Shenzhen ZDCARD Technology Co., Ltd. certification
I'm Online Chat Now

125khz TK4100 For Asset Tracking / Wood Management RFID Nail Tag

125khz TK4100 For Asset Tracking / Wood Management RFID Nail Tag
125khz TK4100 For Asset Tracking / Wood Management RFID Nail Tag 125khz TK4100 For Asset Tracking / Wood Management RFID Nail Tag 125khz TK4100 For Asset Tracking / Wood Management RFID Nail Tag

Large Image :  125khz TK4100 For Asset Tracking / Wood Management RFID Nail Tag

Product Details:
Place of Origin: Shenzhen, China
Brand Name: ZDCARD
Certification: ISO 9001, 14001, OHSAS18001
Model Number: RFID Nail Tag
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: 2000pcs per carton , 49x 25x 18 cm
Delivery Time: 6-12 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 100,000,000 pcs per month

125khz TK4100 For Asset Tracking / Wood Management RFID Nail Tag

Description
Material: ABS Size: 36*9mm, 40*12mm
Antenna Type: Wired With Ferrite Core Color: Black, White, Yellow Or Customized
Chip Option: TK4100, T5577, NFC213, Etc Frequency: 125KHz, 13.56MHz
Reading Range: LF/HF: 0-6cm
High Light:

rfid tree nail tag

,

wood nail tag



Black 125khz TK4100 RFID Nail Tag for Asset Tracking And Wood Management



ABS material , waterproof , various size and RFID chip, color for optional .

Different color of the RFID nail tag can perfectly meet your requirement of different grouping .

The Nail Tags are passive RFID tran‐sponders which are very useful for tree population monitoring or pallet tracking.
fit for different application and this special ABS material is very strong.



Application :

Nail tags are used for asset management systems like management of non-metal goods, security inspection, park management, tree management, etc.
Installing way: Drive in wood or wall.
Color that we can provide: black, white, yellow, pink, red, blue, green, etc.
Also support adding QR code, laser logo printing on surface.
Encoding serial numbers or URL
It is very easy to fit this transponder into wooden objects.
Support endoing, print serial numbers, logos on top.

Fast, secure installation – tags are easily driven into place, and are nearly impossible to remove
Rugged reliability – high resistance to moisture, thermal fluctuation, vibration and shock
Unsurpassed quality – fully automated HID manufacturing and direct-bonding technology ensure dependable performance

 Material  Special ABS material
 Dimension
 36*9mm, 40*12mm, 41*28mm
 Color
 Black, White, Yellow Or Customized
 Affixes to
 Wood
 Water
 IP67, 68° F (20° C), 3.3 ft (1 m) x 1 h
 Vibration
 IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h]
 Shock
 IEC 68.2.29 [40 g, 18 ms, 6 axis, 2000 times]
 Storage Temperature
 -13° to +185° F (-25° to +85° C), 1000 h
 Operating Temperature
 -13° to +185° F (-25° to +85° C)
 Available chips  LF chips: TK4100,EM4305,T5577, etc
 HF chips: FM11RF08, NFC 213, etc.
 UHF chips: Alien H3, Monza 4, etc
 Frequency  125KHz, 13.56MHz, 860-960MHz
 Reading distance  LF/HF: 0-6cm; UHF: 0-3m



Chip Option



Low Frequency Chips(125Khz)
1. Read only chips: TK4100, EM4200
2. Read and write chips: ATMEL T5577, EM4305, EM4450
3. ® 1, ® 2, ® S256

Remark:

is registered trademarks of B.V.



High Frequency Chips(13.56Mhz)
Protocol ISO/IEC 14443A
1. Classic® 1K, Classic® EV1 1K, Classic® 4K
2. Plus® 1K, Plus® 2K, Plus® 4K
3. ® DESFire® 2K, ® DESFire® 4K, ® DESFire® 8K
4. NFC® 203 (144 bytes), NFC® 213 (144 bytes), NFC® 215 (504 bytes), NFC® 216(888 bytes)
5. Ultralight® (48 bytes), Ultralight® EV1 (48 bytes), Ultralight® C(148 bytes)
Protocol ISO 15693/ISO 18000-3
1. ® SLIX, ® SLIX-S, ® SLIX-L, ® SLIX 2
Remark:
and Classic are registered trademarks of B.V. and are used under license.
and Plus are registered trademarks of B.V. and are used under license.
DESFire are registered trademarks of B.V. and are used under license.
and Ultralight are registered trademarks of B.V. and are used under license.
NFC are registered trademarks of B.V. and are used under license.
are registered trademarks of B.V. and are used under license.

Ultra High Frequency Chips(860-960 MHz)
1. Alien Higgs3, Alien Higgs 4, Alien Higgs 5
2. Impinj Monza 3, Monza 4, Monza 5, R6
3. UCODE® G2iM, UCODE® G2iL, UCODE® 7, UCODE® 8, UCODE® DNA

Remark:

UCODE is a registered trademark of B.V.





Product Characteristics



1. Waterproof IP 68
2. Read distance: Up to 5~30cm (Depends on reader and IC type)
3. Flexible & easy-to-wear
4. 100, 000 times reading & writing
5. Also Available: Custom colors, OEM logo
6. Oil resistance
7. Good for recycling
