|Material:||ABS||Size:||Dia 22mm 24mm 28mm|
|Antenna Type:||Wired With Ferrite Core||Color:||Black, White, Yellow Or Customized|
|Chip Option:||TK4100, NFC213, Alien H3, Etc||Frequency:||125KHz, 13.56MHz, 860-960MHz|
|Reading Range:||LF/HF: 0-6cm; UHF: 0-3m|

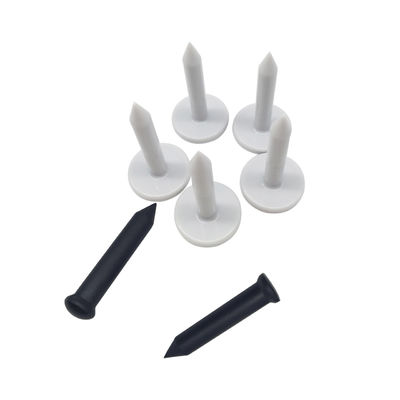

22mm RFID Nail Tag,
Monza4 RFID Nail Tag,
TK4100 RFID Nail Tag
ABS material , waterproof , various size and RFID chip, color for optional .
The Nail Tags are passive RFID tran‐sponders which are very useful for tree population monitoring or pallet tracking.
fit for different application and this special ABS material is very strong.
|Material||Special ABS material|
41*28mm, 40*12mm, 36*9mm
Black, White, Yellow Or Customized
IP67, 68° F (20° C), 3.3 ft (1 m) x 1 h
IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h]
IEC 68.2.29 [40 g, 18 ms, 6 axis, 2000 times]
-13° to +185° F (-25° to +85° C), 1000 h
-13° to +185° F (-25° to +85° C)
|Available chips|| LF chips: TK4100,EM4305,T5577, etc
HF chips: FM11RF08, NFC 213, etc.
UHF chips: Alien H3, Monza 4, etc
|Frequency||125KHz, 13.56MHz, 860-960MHz|
|Reading distance||LF/HF: 0-6cm; UHF: 0-3m|
|Ultra High Frequency Chips(860-960 MHz)|
|1. Alien Higgs3, Alien Higgs 4, Alien Higgs 5|
|2. Impinj Monza 3, Monza 4, Monza 5, R6|
|3. UCODE® G2iM, UCODE® G2iL, UCODE® 7, UCODE® 8, UCODE® DNA|
UCODE is a registered trademark of B.V.
|High Frequency Chips(13.56Mhz)|
|Protocol ISO/IEC 14443A|
|1. Classic® 1K, Classic® EV1 1K, Classic® 4K|
|2. Plus® 1K, Plus® 2K, Plus® 4K|
|3. ® DESFire® 2K, ® DESFire® 4K, ® DESFire® 8K|
|4. NFC® 203 (144 bytes), NFC® 213 (144 bytes), NFC® 215 (504 bytes), NFC® 216(888 bytes)|
|5. Ultralight® (48 bytes), Ultralight® EV1 (48 bytes), Ultralight® C(148 bytes)|
|Protocol ISO 15693/ISO 18000-3|
|1. ® SLIX, ® SLIX-S, ® SLIX-L, ® SLIX 2|
and Classic are registered trademarks of B.V. and are used under license.
and Plus are registered trademarks of B.V. and are used under license.
DESFire are registered trademarks of B.V. and are used under license.
and Ultralight are registered trademarks of B.V. and are used under license.
NFC are registered trademarks of B.V. and are used under license.
are registered trademarks of B.V. and are used under license.
|Low Frequency Chips(125Khz)|
|1. Read only chips: TK4100, EM4200|
|2. Read and write chips: ATMEL T5577, EM4305, EM4450|
|3. ® 1, ® 2, ® S256|
is registered trademarks of B.V.
1. Waterproof IP 68
2. Read distance: Up to 5~30cm (Depends on reader and IC type)
3. Flexible & easy-to-wear
4. 100, 000 times reading & writing
5. Also Available: Custom colors, OEM logo
6. Oil resistance
7. Good for recycling
Our company(ZDCARD Group) is specialized in custom-made products of Plastic card, Smart Card, RFID Card, RFID Tag, RFID Wristband. The cards can be printed with your design. Barcode, Magnetic stripe, Signature panel are feasible.
We are based in Shenzhen, a special economic zone in China for international and multinational companies and manufacturers. Our total assets exceed 200 million RMB, and have purchased our own high-tech industrial park with an area of 30,000 square meters.
Hope to have a chance to build a long business relationship with you.
1. How can I place an order?
Please provide the details of your requirements as clear as possible. For designing or further discussion, it is better to contact us via email, skype, whatsapp, or other instant ways.
2. When can I get the price?
Usually within 5 hours after we get your inquiry.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples. Free for a blank/stocked sample to check the quality, as long as you afford the express freight. For printed samples, we will check $30-$100 to cover the cost on film&printing.
4. How long can I expect to get the samples?
After you pay the sample charge and send us confirmed files, the samples will be ready in 3-7days. The samples will be sent to you via express and arrive in 3-5 days.
5. What kind of files do you accept for printing?
AI, PDF, PSD, CDR, etc.
6. Can you do the design for us?
Yes, we have a professional team having rich experience in design and manufacturing. Just tell us your idea, we will help to carry out your idea into perfect product.
7. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally 7-15days for about 10,000-100,000pcs.
8. What is your terms of delivery?
We accept EXW, FOB, CNF, DDU, DDP, etc.
9.Could I put our own logo on the it?
Yes,it is customized order.
1. 7x24 hours prompt reply.
2. High quality products provided.
3. Welcome to visit in our factory.
4. Free sample is available.
Install of the tag :
