Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay

Certification
China Shenzhen ZDCARD Technology Co., Ltd. certification
China Shenzhen ZDCARD Technology Co., Ltd. certification
I'm Online Chat Now

Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay

Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay
Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay

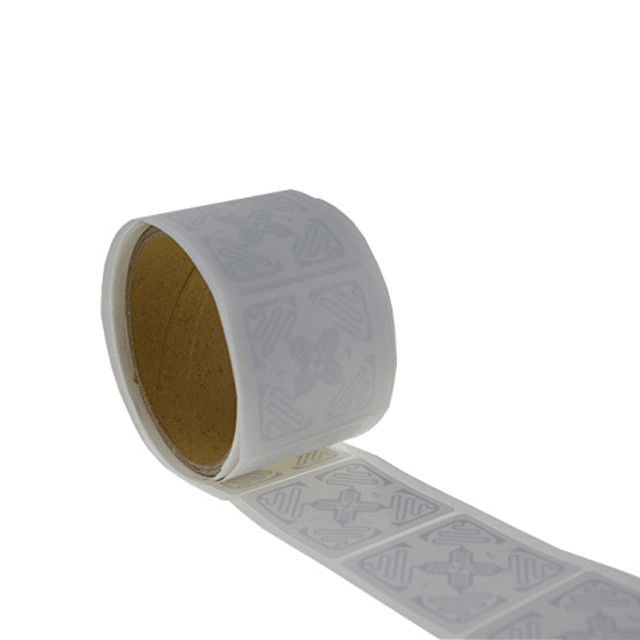

Large Image :  Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay

Product Details:
Place of Origin: Shenzhen, China
Brand Name: ZDCARD
Certification: ISO 9001, 14001, OHSAS18001
Model Number: Inlay RFID UHF Tag
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: 2000pcs/roll,10000pcs/ctn
Delivery Time: 6-12 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 100,000,000 pcs per month

Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay

Description
Shape: Rectange Power Supply Mode: Passive
Name: Uhf Alien Iso 18000 - 6c Rectange Rfid Wet Inlay Chip Type: Read / Write
Chip: Aline H3 HS Code: 8523591000
Antenna: UHF Antenna Material: PET
Reading Distance: 1-6m Size: 70*17
High Light:

rectange rfid wet inlay

,

alien rfid wet inlay

,

6m uhf inlay

860 - 960MHz Passive Long Range RFID Tag UHF Alien ISO 18000 - 6C Rectange Shape Wet Inlay Dry Inlay

Wet inlay is discontinuous network structure with sticky and smooth surface, which is the essential difference with the dry label. The RFID wet inlay has wide usages, it is usually used in public transportation, access management, electronic ticket, logistics and supply management, manufacturing and assembly, document tracking, library management, animal identity, etc.. For these different areas, we provide wet inlays with different specifications and frequencies. You can select appropriate wet inlay according to your own need.





Main Features:
1. There are 5 size is optional. (87*18mm, 70*15mm, 60*20mm, 56*10mm, 38*20mm).
2. The chip is NXP's latest UHF chip UCODE 8, which has high sensitivity, best group read performance (very important in washing),100% accuracy.
3. Applied to industrial washing, capable of 80-120bar pressure.
4. 250 times wash cycles or 3 years.
5. 100% function tested by Agilent and Voyantec Tagformace.




Data Sheet



Chip Aline H3
Model No. AZ9662
Air Interface Protocol EPC global UHF Class 1 Gen 2 (ISO 18000-6C)
Operation Frequency 860~960Mhz
Memory EPC 96-480 bit, User 512 bit, TID 32 bit
EPC Memory Content Unique, randomized number
Max Read Distance >3 m (10 feet)
Application Surface Materials Glass, Plastic, Wood, Cardboard
Tag Form Factor Dry Inlay/wet inlay/White wet inlay(label)
Tag Materials Printable coated paper or PET with film
Attachment Method General Purpose Adhesive or enclose coated paper
Antenna Size 70*17mm
Inlay size 73.5*21.2mm
Weight < 1 gram
Operating Temp -40ºC to +70ºC
Storage condition 20% to 90% RH
Applications

Assets management

1. Access security Control
2. Ticketing
3. Production line management
4. warehouse management
5. sales channel management
6. valuables management
7. library management
8. logistics management

Reusable plastic pallets








Product Package


2500PCS/Roll, 10000pcs/Carton





Other Chip & Antenna for option :



Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay 0
Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay 1

Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay 2Uhf 6m Alien Iso 18000 - 6c Rectange Rfid Wet Inlay 3
